Circular Connectors
1. What are Circular Connectors?
A circular connector is an electrical interconnect device with a cylindrical shell design. It is mainly used for signal, power and data transmission between devices, components or systems. It is an indispensable key component in complex industrial and electronic systems.
Its core features include:
Solid Structure: The cylindrical design provides higher mechanical strength and excellent vibration and impact resistance;
Protection Performance: Most models support IP67/IP68 protection level and withstand harsh environments (such as high temperature, humidity, and dust);
Separability: Supports quick plugging and unplugging, which is convenient for equipment maintenance and upgrading.
2. What are the Core Components of Circular Connectors?
The typical structure of a circular connector includes the following key components:
Contacts: Made of copper alloy, the plating (such as gold and nickel) improves conductivity and corrosion resistance and is divided into Pin and Socket.
Insulator: Fixes the contacts and ensures electrical isolation. The material is usually high-temperature-resistant plastic or ceramic.
Shell:
Metal or engineering plastic material provides mechanical protection and alignment functions, some models are equipped with locking mechanisms (such as threaded coupling).
Accessories:
Sealing rings, cable clamps, keyways, etc., to enhance environmental adaptability and installation stability.
3. What are Circular Connectors Used for?
The reliability of circular connectors makes them widely used in the following scenarios:
Industrial Automation: signal and power connection of sensors, motors, and PLC equipment;
Aerospace and Military: high-reliability requirements in extreme environments, such as interconnection of aircraft internal systems;
Medical Equipment: stable transmission of precision instruments such as high-frequency machines and monitors;
Transportation: connection of train control systems and on-board electronic equipment.
4. What are the Types of Circular Connectors?
1) Classification by Function:
Signal Transmission Type: low current, high-density contacts, suitable for data communication;
Power Transmission Type: high current contacts, used for power distribution.
2) Classification by Protection Level:
Standard type (IP40), sealed type (IP68), explosion-proof type;
3) Classification by Installation Method:

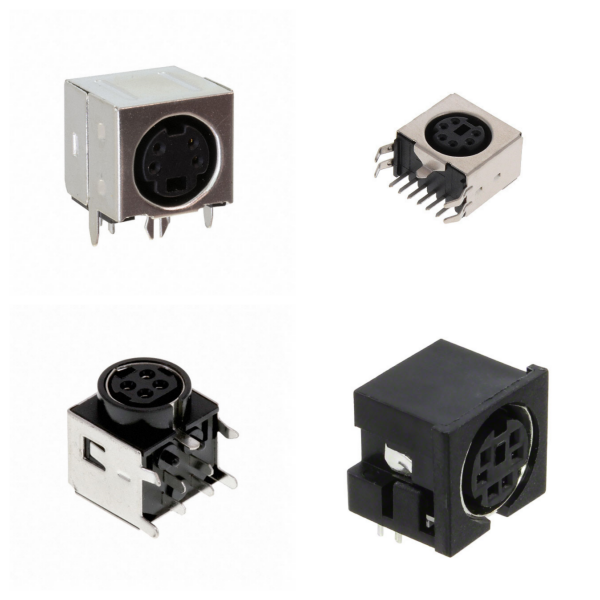

Panel installation, direct cable connection, PCB welding, etc.
5. What are the Advantages of Circular Connectors?
Environmental Adaptability: corrosion-resistant, vibration-resistant, and can work stably in the temperature range of -25°C to 90°C;
Multi-function Integration: supports mixed signal (power + data) transmission, reducing wiring complexity;
Standardized Design: complies with international standards such as DIN and MIL, and has strong compatibility.
6. Circular Connectors FAQs
1)How do you choose suitable circular connector accessories?
Accessories need to be matched according to cable specifications. For example, FJA, FJC, FJD, and other series of cable accessories can adapt to different wire diameters and shielding requirements. In industrial applications, multi-brand compatible solutions are provided by platforms such as Mouser, Amphenol, TE Connectivity, etc.
2)What are the international/industry standards for circular connectors?
Domestic products follow GJB2889 and the Ministry of Electronics Industry standard SJ1744-81; international products may comply with DIN standards (such as circular DIN connectors) or general industrial specifications (such as IP ratings and IEC standards).
3)What is the protection performance of industrial circular connectors?
High-end industrial models (such as Phoenix Contact M17-M40 PRO series) support IP67 and above protection levels, are suitable for dusty and humid environments, and can resist vibration and shock up to 196 m/s² (20g) acceleration.
4) What are the quick installation technologies for circular connectors?
Some models use the "Oneclick quick locking system" to prompt the correct locking position through sound and tactile feedback. For example, Phoenix Contact's M12 push-pull self-locking connector supports tool-free installation and is suitable for space-constrained scenarios.
5) What are the electrical performance parameters of circular connectors?
Typical parameters include:
Current: Rated values range from 1A to hundreds of amperes (depending on the model);
Voltage: Low-voltage signal transmission to kilovolt-level power transmission; Mechanical life: ≥1000 plug-in and unplug cycles.
6) How to obtain customized circular connector solutions?
Some manufacturers (such as Phoenix Contact) provide modular systems that support PCB embedded installation or flexible interface customization, suitable for personalized electronic device integration.
