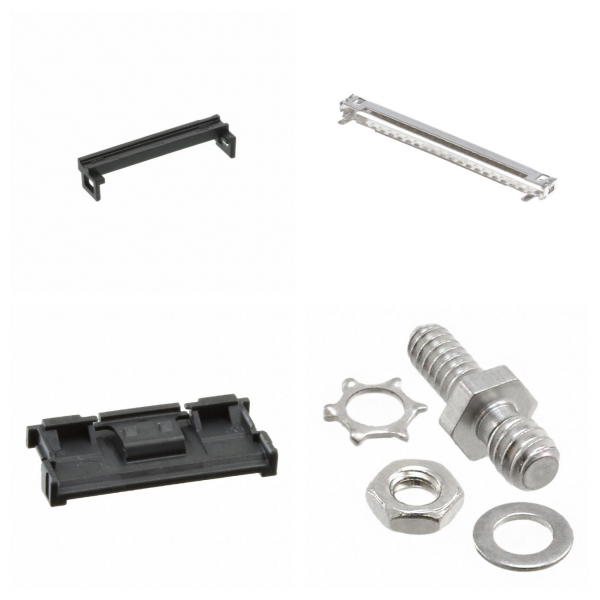

FFC, FPC (Flat Flexible) Connector Accessories (0)
<h1> FFC, FPC (Flat Flexible) Connector Accessories </h1> <p> FFC, FPC (Flat Flexible) Connector Accessories are items used with FFC, FPC connectors like a Bridge Splice, Cover, Ground Plate, Jack Screw, or Plate to be used with DF 19, FF series, FFC/FPC Cables, Flat Flex connectors, Flat Flex Contacts, Receptacle Housing or 501786 and 501864 series. </p> <p>

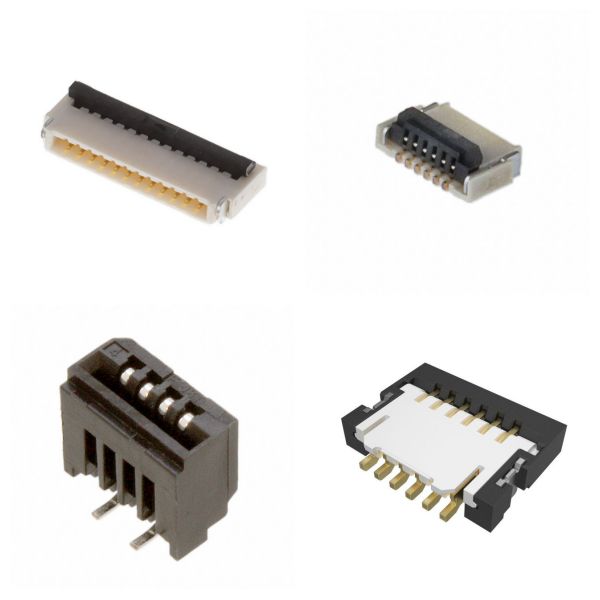

FFC, FPC (Flat Flexible) Connector Assemblies (0)
<h1> FFC, FPC (Flat Flexible) Connector Assemblies </h1> <p> Products in this family are interconnect products used in conjunction with Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) materials, and are predominantly of the sort which perform a cable-to-board interconnect function, being mounted to a printed circuit board, and providing both electrical connection and mechanical retention for an inserted FFC or FPC cable. </p> <p>

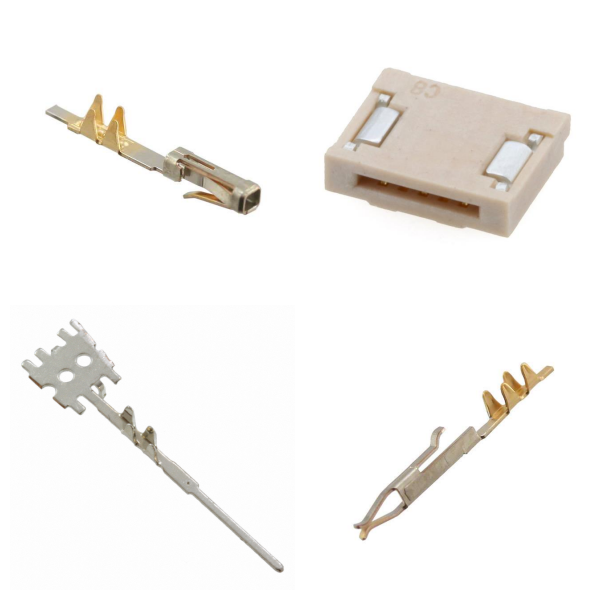

FFC, FPC (Flat Flexible) Connector Contacts (0)
<h1> FFC, FPC (Flat Flexible) Connector Contacts </h1> <p> Products in this family are electrical contacts designed for application to Flat Flexible Cable (FFC) or Flexible Printed Circuit (FPC) materials, and inserted into a housing as a means of creating a connector system for wire-to-board applications. Often used as a substitute for common "ribbon" cables that are terminated using Insulation Displacement Connectors (IDCs) due to its lesser thickness, application of contacts to typical FFC material requires a higher degree of precision than the earlier IDC process and is more difficult to achieve without proper tooling. </p> <p>

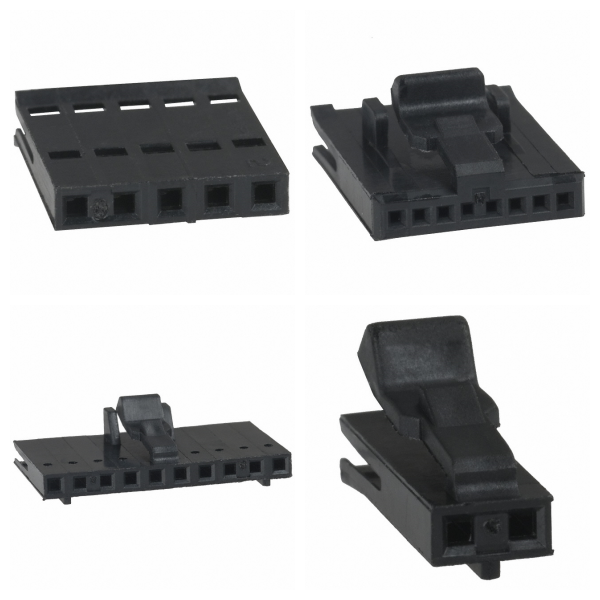

FFC, FPC (Flat Flexible) Connector Housings (0)
<h1> FFC, FPC (Flat Flexible) Connector Housings </h1> <p> FFC, FPC, or flat flexible connector housings are characterized by their number of positions, pitch, number of rows, and type of cable accepted. There are housings for both male and female connectors. Voltage rating options are 30 V, 50 V, 100 V, 300 V, or 500 V. There is a variety of operating temperatures from -65 Celsius to 125 Celsius. Material options are polyamide, polybutylene, polyester, and thermoplastic. </p> <p>

FFC, FPC (Flat Flexible) Connectors

FFC/FPC (Flat Flexible) connectors are interconnection components designed for flexible flat cables (FFC) and flexible printed circuit boards (FPC), playing a key role in the miniaturization and high-density integration of electronic devices.



1. What are FFC, FPC (Flat Flexible) Connectors?

1) Definition

FFC Connector: used to connect ribbon flat flexible cables (FFC) to PCBs or other components, usually with a high-density narrow design to fit into small spaces.

‌FPC Connector: designed for flexible circuit boards (FPCs), one end is fixed to the PCB by SMT soldering, and the other end is plugged into the FPC, with a built-in locking device to ensure contact reliability.



Both are made of PET insulating material or polyimide as the base material, and are made by the tinned copper wire pressing or printing process.



2) Core Structure

Includes copper foil substrate (electrolytic copper/rolled copper), cover film (insulating layer), adhesive, and reinforcement plate (to enhance mechanical strength), etc.



FPC connectors must meet strict coplanarity requirements (≤0.10mm) to ensure welding quality.



2. What are the Advantages of FFC, FPC (Flat Flexible) Connectors?

‌Flexibility‌

Supports bending and folding, adapts to complex spatial layout, and bending radius control can extend service life.

‌High density and lightweight‌

Flat design realizes multi-wire integration, reduces volume and weight, and is suitable for lightweight needs such as mobile devices.



‌Reliability‌

Excellent vibration and impact resistance, and the locking structure enhances plug-in stability.



‌Signal integrity‌

Optimize conductor spacing and shielding design to reduce electromagnetic interference (EMI).



3. What are FFC, FPC (Flat Flexible) Connectors Used for?

‌Field

Application scenario

Consumer electronics

Smartphone display connection, camera module, wearable device internal wiring

Automotive electronics

Car navigation system, sensor signal transmission, and entertainment equipment interconnection

Industrial and medical equipment

Precision instrument control board connection, medical monitoring equipment data transmission

Computer and peripherals

Printer head and motherboard connection, laptop internal high-speed signal transmission



4. Design and Use Precautions for FFC, FPC (Flat Flexible) Connectors

‌Installation Process‌

FFC mostly uses plug-in connectors for easy maintenance; FPC requires precision welding, and the coplanarity of solder joints needs to be controlled.



The welding temperature needs to be adapted to the heat resistance of the material (e.g., polyimide can withstand higher temperatures).



‌Parameter Matching‌

The conductor pitch (Pitch) is commonly 0.3mm and 0.5mm, which needs to be selected according to the signal frequency.



The total length (TL), margin (M), etc., need to meet the equipment space limitations.



‌Durability Design‌

Avoid excessive bending (the recommended minimum bending radius is ≥3 times the thickness of the cable).



The plug-in life needs to meet the application scenario requirements (e.g., industrial equipment needs ≥10,000 times).



5. The Difference between FFC and FPC Connectors

‌Features

FFC Connector

FPC Connector

Structural Complexity

Simple parallel conductor arrangement, single-layer insulation

Multi-layer printed circuit, including shielding layer and reinforcement board

Cost

Low, suitable for mass production

High, adapt to complex circuit requirements

Typical Applications

Printers, home appliance signal transmission

High-frequency signal equipment (such as camera modules)



FFC/FPC connectors have become one of the core components of miniaturization and high performance of modern electronic devices through their unique flexible design and adaptability.
