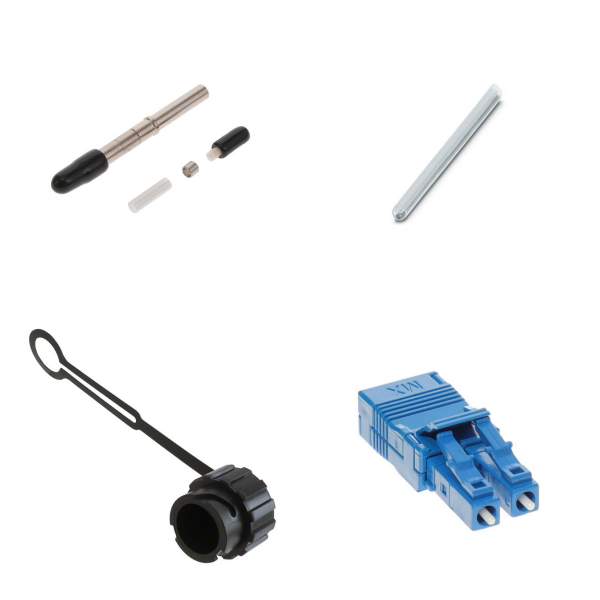

Fiber Optic Connector Accessories (0)
<h1> Fiber Optic Connector Accessories </h1> <p> Fiber optic connector accessories contain a variety of accessory types that are either used for a specific connector series or in general. Accessory types include: device housing, adapter, alignment ring, blank panel, blockout device, panel mount frame, loopback, housing carrier, dust cap, protective cap, coupler, retention clip, cap or cover, crimp ring, etc. </p> <p>

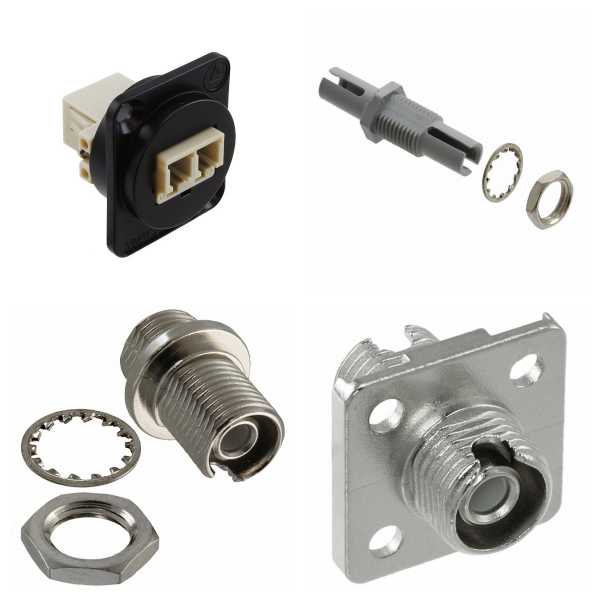

Fiber Optic Connector Adapters (0)
<h1> Fiber Optic Connector Adapters </h1> <p> Fiber optic connector adapters facilitate the interconnection of connectorized fiber optic cables. Most commonly, they provide for interconnection of cables having similar connectors in order to facilitate passage through an enclosure wall or to extend cable length. Products incorporating standard fiber optic connector types within an outer shroud or shield feature to provide increased environmental resistance are also included. </p> <p>

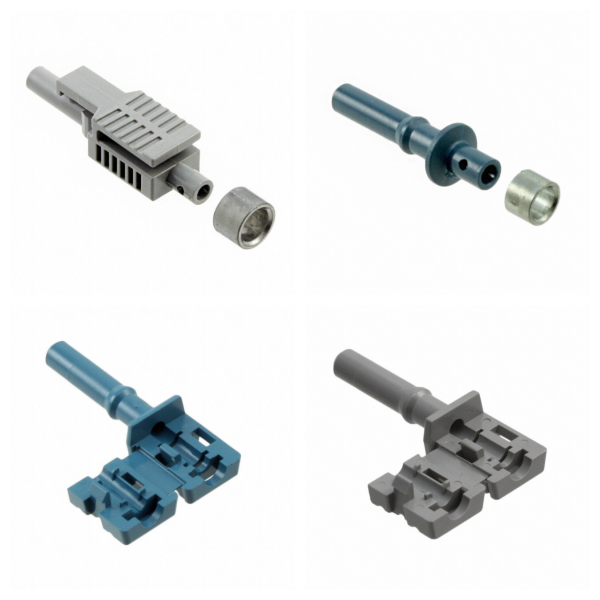

Fiber Optic Connector Assemblies (0)
<h1> Fiber Optic Connector Assemblies </h1> <p> Fiber Optic Connectors are the ends used to terminate optical fiber cable. The connector styles are DNP, ESCON, FC, FDDI, FSD, FSMA, LC, MPO, MT-RJ, MU, SC, SCRJ, SCRJ and Power Jack, SMA, ST, TNC, and VF-45.  The mode options are multimode (OM1, OM2, OM3, OM4), POF, and Singlemode (OM1).  These connectors accept fiber core diameters ranging from 3 µm to 1000 µm. </p> <p>

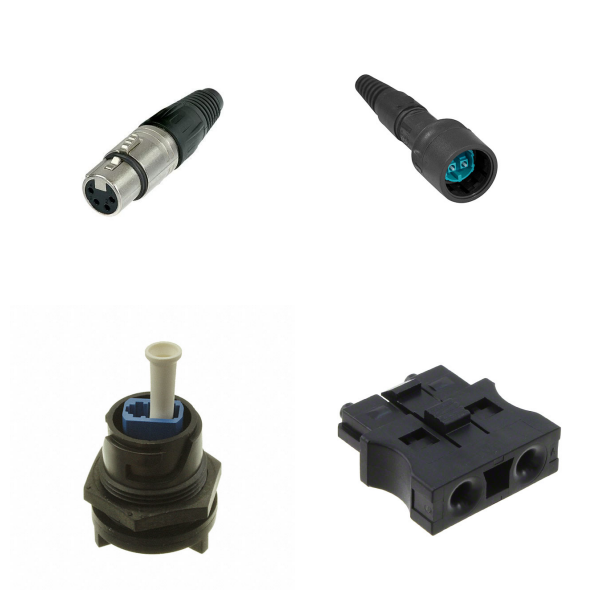

Fiber Optic Connector Housings (0)
<h1> Fiber Optic Connector Housings </h1> <p> Fiber Optic Connector Housings provide the mechanism for snapping into a mating sleeve (adapter) whether it is board mount, free hanging, or panel mount. The housings are to be used with F1 contacts, F2 contacts, HMUA-F3 ferrules, HMUB sleeve holder, HSC ferrules, LC connectors, LC plugs, Lightray MPX connectors, MPO plugs, MPO receptacles, MU ferrules, and SC connectors and plugs. </p> <p>

Fiber Optic Connectors

1. Fiber Optic Connectors Overview‌

A fiber optic connector is a precision component used for detachable connection between optical fibers. It realizes stable transmission of optical signals through physical contact or adapters. Its core function is to reduce optical loss and ensure high-precision alignment of the butt end faces. Its design relies on the principle of total reflection of light, uses high-precision materials such as ceramic pins to ensure the matching of the fiber end faces, and cooperates with the adapter through mechanical structures such as a plug-in and thread locking.



2. What are the Main Types of Fiber Optic Connectors?‌

1)‌FC (Ferrule Connector)‌

‌Structure‌: round metal/ceramic ferrule, fastened with thread.

‌Scenario‌: Suitable for telecommunications equipment and single-mode optical fiber, with high stability but low plug-in efficiency.



2)‌SC (Subscriber Connector)‌

‌Structure‌: square push-pull plastic housing, no rotation required.

‌Scenario‌: Common in local area networks (LAN) and wide area networks (WAN), easy to plug and unplug, and suitable for high-density installation.



3)‌ST (Straight Tip)‌

‌Structure‌: bayonet locking, round metal ferrule.

‌Scenario‌: Mostly used in multimode fiber distribution frames, with strong pressure resistance but large size.



4)‌LC (Lucent Connector)‌

‌Structure‌: Narrow square design, push-pull operation.

‌Scenario‌: High-density network equipment (such as data centers), only half the size of SC, saving space.



5)‌MT-RJ/MTP‌

‌Structure‌: Multi-core integrated design, supporting 12/24-core optical fibers.

‌Scenario‌: Hyperscale data centers and high-speed parallel optical modules.



3. What are the ‌Key Performance Parameters of Fiber Optic Connectors?‌

‌Insertion Loss‌ (IL): Measures the power attenuation of the optical signal after passing through the connector, usually required to be less than 0.3 dB.

‌Return Loss‌ (RL): The ability to suppress reflected light power, single-mode connectors must be ≥40 dB.

‌Repeatability‌: The stability of performance after multiple plugging and unplugging depends on the wear resistance and structural design of the ceramic pin.



4. What are Fiber Optic Connectors Used for?‌

‌Communication Network‌: Including telecommunication backbone network, metropolitan area network, and fiber interconnection of 5G base stations.

‌Data Center‌: High-density LC/MTP connectors support high-speed data transmission between servers and switches.

‌Industrial and Military‌: High-temperature and vibration-resistant reinforced connectors (such as ST) are required in harsh environments.

‌Consumer Electronics‌: Driven by VCSEL technology, fiber connectors are gradually applied to 3D sensing and short-distance optical interconnection.



5. ‌Technology Development Trend of Fiber Optic Connectors‌

‌High Density‌: Miniaturized interfaces such as LC and MTP have become mainstream, supporting the demand for 400G/800G optical modules.

‌Low-loss Process‌: APC (oblique 8° end face polishing) technology improves return loss performance and adapts to long-distance transmission.

‌Intelligent Integration‌: Optical-electrical hybrid connectors (such as CPO co-packaging) reduce system power consumption and latency.



6. Major Manufacturers for Fiber Optic Connectors

Global leading manufacturers include Corning's SC/LC series, Amphenol's FC/ST products, and Molex's MTP/MPO multi-core solutions.
