AC DC Configurable Power Supplies (Factory Assembled)

AC-DC Configurable Power Supplies are modular power systems that convert alternating current (AC) to direct current (DC) and offer flexible configuration of output parameters to meet the customized requirements of various devices. The key advantages of these power supplies lie in their scalability and high efficiency, making them suitable for high-reliability applications. They typically consist of a power factor correction (PFC) front end and multiple pluggable DC-DC converter modules. They support single, dual, or triple output modes and a wide range of output voltages (e.g., 2V to 60V).

1. What are the Key Features of AC DC Configurable Power Supplies?

Configurable Outputs: Users can create thousands of output combinations by mixing and matching modules, such as parallel or series connections, to match specific voltage and current requirements (e.g., 12.5A output).

Digital Interface and Control: An integrated PMBus®-compatible I2C serial interface allows remote programming of output voltage, current limit, and enable/disable status, while also supporting real-time monitoring of voltage, current, and temperature. ‌

‌High Efficiency and Reliability‌: With conversion efficiencies up to 94% and high mean time between failures (MTBF), the iVS3 series, for example, boasts a 550,000-hour lifespan, making it suitable for harsh industrial environments. ‌

‌Safety Certification‌: Most series are certified for medical equipment safety (e.g., IEC 60601), ensuring stable operation in sensitive applications. ‌

2. Main Product Series of AC DC Configurable Power Supplies

‌iVS3 Series‌: Offers power ranging from 1800W to 4500W, features 14 output slots, and supports up to 42 isolated outputs, making it ideal for medical equipment and industrial automation.

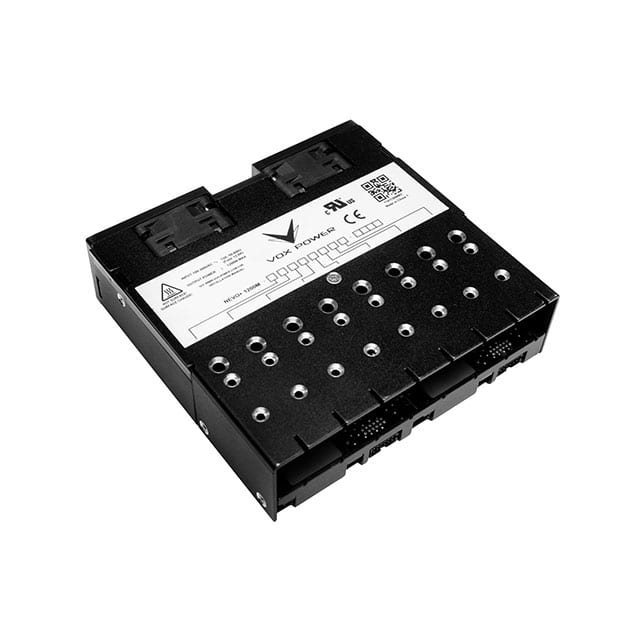

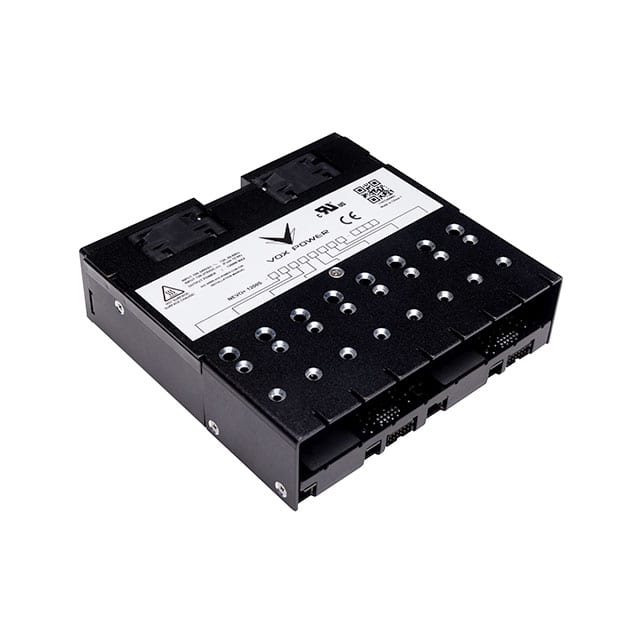

Vox Power NEVO+ Series: Includes the NEVO+600 (600W) and NEVO+1200 (1200W) in a compact design (measured as low as 5" x 3" x 1.61"), suitable for robotics, avionics, and LED lighting.

EXCELSYS XGA Module: 150W adjustable output power supply (10.8V~15.6V), suitable for test and measurement equipment and laboratory instruments.

iMP4 Series: 750W to 1158W power, supports five module slots and 15 outputs, and emphasizes high-temperature adaptability.

3. What are the Applications of AC DC Configurable Power Supplies?

Widely used in medical equipment (such as diagnostic instruments), telecommunications infrastructure, industrial automation systems, aerospace equipment, and renewable energy systems. Its modular design simplifies upgrades to older power systems or custom integration.
