<h1> Accessories </h1> <p> <strong>Resistor Leads</strong>: These are wires that are attached to the ends of a resistor, allowing it to be connected to a circuit. </p> <p> <strong>Heat Sinks</strong>: These are devices that are used to dissipate heat from a resistor, especially when the resistor is carrying a large amount of current. </p> <p> <strong>Terminal Blocks</strong>: These are connectors that allow multiple resistors to be connected together, and also provide a way to connect the resistors to a circuit. </p> <p> <strong>Resistor Networks</strong>: These are arrays of resistors that are connected together in a specific configuration, and are used to provide a specific resistance value or to divide a voltage in a particular ratio. </p> <p> <strong>Resistor Packs</strong>: These are groups of resistors that are connected together in parallel or in series, and are used to provide a specific resistance value. </p> <p> <strong>Resistor Kits</strong>: These are collections of resistors that come in a variety of values and sizes, and are used for prototyping or for building custom circuits. </p> <p> <strong>Resistor Holders</strong>: These are devices that hold a resistor in place and provide a way to connect the resistor to a circuit. </p>

<h1> Chassis Mount Resistors </h1> <p> Chassis Mount Resistors are resistor components designed for high-power applications. They are secured directly to the equipment rack or heat sink via metal brackets or bolts. </p> <p>   </p> <h2> 1. What are the Key Features of Chassis Mount Resistors? </h2> <p> <strong>High Power Capacity</strong>: Rated power range 50W-1000W, with efficient heat dissipation achieved through the metal housing. </p> <p>   </p> <p> <strong>Industrial-Grade Construction</strong>: Utilizing a ceramic core and aluminum housing, they withstand extreme temperatures of -55°C to 275°C. </p> <p>   </p> <p> <strong>Mounting Advantages</strong>: Providing #10 screw holes for vertical or horizontal mounting. </p> <p>   </p> <h2> 2. What are the Typical Applications of Chassis Mount Resistors? </h2> <p> <strong>Power Systems</strong>: Inverter Braking Resistors, UPS Power Distribution Units. </p> <p>   </p> <p> <strong>Industrial Control</strong>: Servo Motor Dynamic Braking, Welding Equipment Current Regulation. </p> <p>   </p> <p> <strong>New Energy</strong>: Photovoltaic Inverter MPPT Modules, Electric Vehicle Charging Stations. </p> <p>   </p> <h2> 3. Key Selection Parameters for Chassis Mount Resistors </h2> <table> <tbody> <tr class="firstRow"> <td width="177" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Parameter </p> </td> <td width="230" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Typical Range </p> </td> <td width="162" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Test Standard </p> </td> </tr> <tr style="height:28px"> <td width="177" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Resistance Tolerance </p> </td> <td width="230" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> ±1% to ±10% </p> </td> <td width="162" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> IEC 60115-8 </p> </td> </tr> <tr style="height:28px"> <td width="177" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Temperature Coefficient </p> </td> <td width="230" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> ±50ppm/°C to ±300ppm/°C </p> </td> <td width="162" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> MIL-R-26 </p> </td> </tr> <tr style="height:25px"> <td width="177" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Insulation Resistance </p> </td> <td width="230" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> ≥1000MΩ@500VDC </p> </td> <td width="162" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> UL 94V-0 </p> </td> </tr> </tbody> </table> <p>   </p> <h2> 4. Technology Trends of Chassis Mount Resistors </h2> <p> <strong>Material Innovation</strong>: Aluminum nitride substrates replace alumina substrates, increasing thermal conductivity by 3 times. </p> <p>   </p> <p> <strong>Smart Integration</strong>: Some manufacturers offer smart resistor models with integrated temperature sensors. </p> <p>   </p> <p> <strong>Customization</strong>: Supports non-standard resistance values (e.g., 0.001Ω to 10MΩ) and special coating requirements. </p>

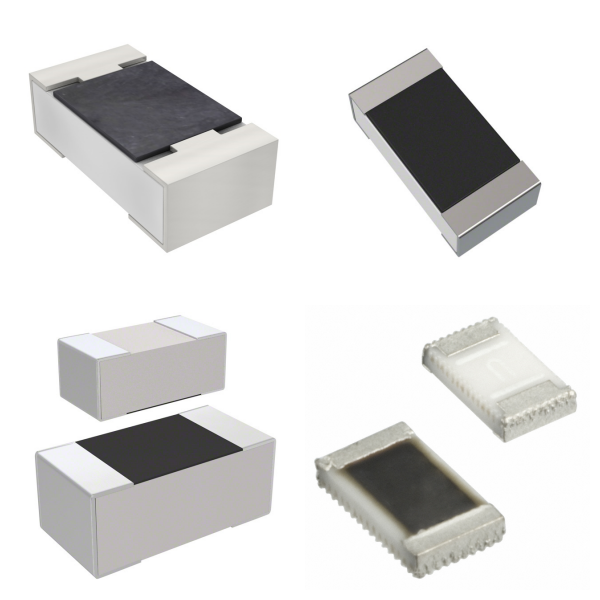

<h1> Chip Resistor - Surface Mount </h1> <h2> 1. What are Surface Mount Chip Resistors? </h2> <p> A surface mount chip resistor is a resistive component mounted on a circuit board using surface mount technology (SMT). </p> <p>   </p> <h2> 2. What are the Core Characteristics of Surface Mount Chip Resistors? </h2> <p> <strong>Structure</strong>: Typically composed of a ceramic substrate, a metal resistive film, internal electrodes, and solder terminals. Some models utilize thick-film (metal oxide mixed layer) or thin-film technology. </p> <p>   </p> <p> <strong>Size Advantage</strong>: Compact (e.g., rectangular package), suitable for high-density circuit designs. </p> <p>   </p> <p> <strong>Performance Characteristics</strong>: High precision (selectable from ±1% to ±0.1%), low temperature coefficient (excellent temperature stability), and high-temperature resistance (some models support operating temperatures exceeding 200°C). </p> <p>   </p> <h2> 3. What are the Working Principles of Surface Mount Chip Resistors? </h2> <p> Based on Ohm's law (R=V/I), voltage/current regulation is achieved through the resistance of the resistive film to current flow. Some specialized types, such as fuse resistors, use a low-melting-point material to interrupt the circuit in the event of an overcurrent. </p> <p>   </p> <h2> 4. What are the Applications of Surface Mount Chip Resistors? </h2> <p> <strong>Consumer Electronics</strong>: Signal processing and circuit protection in micro-devices such as mobile phones and tablets. </p> <p>   </p> <p> <strong>Automotive Electronics</strong>: High-temperature, high-reliability applications such as engine control and power management. </p> <p>   </p> <p> <strong>Industrial Equipment</strong>: Used in precision control circuits for current sensing and signal attenuation. </p> <p>   </p> <h2> 5. Manufacturing Process of Surface Mount Chip Resistors </h2> <p> <strong>The following technologies are primarily used</strong>: </p> <p>   </p> <p> <strong>Thick-film Process</strong>: Metal oxide slurry is printed on a ceramic substrate, and laser trimming is used to achieve precise resistance values. </p> <p>   </p> <p> <strong>Thin-film Process</strong>: Vacuum-deposited metal thin film offers higher precision but higher costs. </p> <p>   </p> <p> <strong>Protective Layer</strong>: Epoxy resin or ceramic coating enhances mechanical strength and environmental resistance. </p> <p>   </p> <h2> 6. Selection Considerations for Surface Mount Chip Resistors </h2> <p> Resistance accuracy, power rating (e.g., 0201 package is typically 1/20W), voltage rating, and operating temperature range should be considered comprehensively. </p>

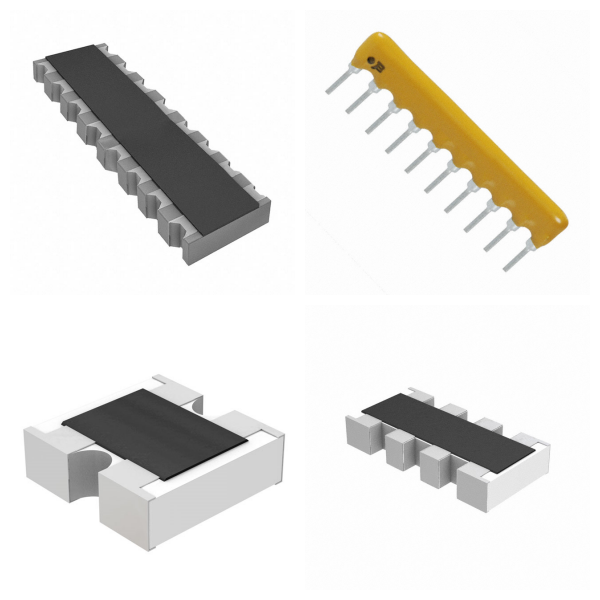

<h1> Resistor Networks, Arrays </h1> <h2> 1. What are Resistor Networks, Arrays? </h2> <p> Resistor networks/arrays are miniaturized components consisting of multiple independent resistors integrated on a single substrate. Based on their topology, they can be categorized as follows: </p> <p> <strong>Series Type</strong>: All resistors are connected end to end (e.g., DIP-8 package); </p> <p> <strong>Parallel Type</strong>: All resistors share a common terminal (e.g., SOT-23-6 package); </p> <p> <strong>Hybrid Type</strong>: A composite circuit structure (e.g., bias networks in integrated circuits). </p> <p>   </p> <h2> 2. What are the Core Parameters of Resistor Networks, Arrays? </h2> <table> <tbody> <tr class="firstRow"> <td width="180" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Parameter </p> </td> <td width="186" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Typical Value Range </p> </td> <td width="202" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Test Conditions </p> </td> </tr> <tr style="height:31px"> <td width="180" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Resistance Tolerance </p> </td> <td width="186" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> ±1% to ±20% </p> </td> <td width="202" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 25°C Reference Temperature </p> </td> </tr> <tr style="height:30px"> <td width="180" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Temperature Coefficient </p> </td> <td width="186" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> ±50ppm/℃~±200ppm/℃ </p> </td> <td width="202" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> -55℃~125℃ </p> </td> </tr> <tr style="height:28px"> <td width="180" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Rated Power </p> </td> <td width="186" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 50mW~1W </p> </td> <td width="202" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 70°C Ambient Temperature </p> </td> </tr> </tbody> </table> <p>   </p> <h2> 3. What are the Application Scenarios of Resistor Networks, Arrays? </h2> <p> <strong>Signal Conditioning</strong>: Reference Voltage Divider for ADC/DACs. </p> <p> <strong>Termination Matching</strong>: Impedance Control (Differential Pair Matching) for High-Speed PCBs. </p> <p> <strong>Current Sensing</strong>: Multi-Channel Current Monitoring Arrays. </p> <p>   </p> <h2> 4. Selection Guide for Resistor Networks, Arrays </h2> <p> <strong>Prioritized Considerations</strong>: </p> <p> Laser-Trimmed Thin-Film Resistors (Better Accuracy Than Thick-Film Resistors). </p> <p> Low Parasitic Capacitance Design (<0.5pF for High-Frequency Applications). </p> <p> Anti-Sulfurization Treatment (Suitable for Industrial Environments). </p> <p>   </p> <h2> 5. Recent Developments of Resistor Networks, Arrays </h2> <p> By 2025, new smart resistor networks will begin to integrate digital calibration interfaces (such as I²C-adjustable resistor arrays), supporting dynamic resistance value adjustment. </p>

<h1> Specialized Resistors </h1> <h2> 1. What are Specialized Resistors? </h2> <p> Specialized resistors are designed for specific applications and are typically made from materials such as carbon film, metal film, and metal oxide film. They can be engineered to have specific properties (resistance, tolerance, temperature coefficient, etc.) or for use in specific environments (high temperature, high vibration, etc.). They are often used in high-end or specialized applications such as aerospace, medical, and industrial electronics. </p> <p>   </p> <h2> 2. How do Specialized Resistors Work? </h2> <p> Specialized resistors are designed and manufactured to meet specific electrical requirements. They differ from standard resistors in that they are typically designed with specific electrical characteristics, such as resistance value, voltage, and power rating. They are also designed to perform specific tasks, such as current limiting, temperature compensation, and signal processing. </p> <p>   </p> <h2> 3. What are the Types of Specialized Resistors? </h2> <p> <strong>Variable Resistors</strong>: These resistors are used to adjust the resistance value in a circuit. Common variable resistors include potentiometers, rheostats, and trimmers. </p> <p> <strong>Thermistors</strong>: These resistors are temperature-sensitive and can be used to measure or control temperature in a circuit. </p> <p> <strong>Photoresistors</strong>: These resistors are light-sensitive and can be used to measure or control the amount of light in a circuit. </p> <p> <strong>Varistors</strong>: These resistors are sensitive to voltage and can be used to measure or control the amount of voltage in a circuit. </p> <p> <strong>Power Resistors</strong>: These resistors are designed to handle large amounts of current and can be used in circuits where high current is expected. </p> <p> <strong>Non-Inductive Resistors</strong>: These resistors are designed with minimal inductance, making them suitable for applications involving high-frequency signals. </p>

<h1> Through Hole Resistors </h1> <h2> 1. What are Through Hole Resistors? </h2> <p> Through-hole resistors, the most classic type of resistor, feature leads designed to pass through PCB holes for soldering. They have the following notable features: </p> <p> <strong>Structural Advantages</strong>: Axial lead structure provides excellent mechanical stability </p> <p> <strong>Power Capacity</strong>: Rated power ranges from 1/8W to 50W (special models up to 300W) </p> <p> <strong>Temperature Coefficient</strong>: Available from ±50ppm/°C to ±1000ppm/°C (precision models up to ±5ppm/°C) </p> <p> <strong>Tolerance Precision</strong>: Available in multiple ranges from standard ±5% to precise ±0.1% </p> <p>   </p> <h2> 2. What are the Technical Parameters of Through Hole Resistors? </h2> <table> <tbody> <tr class="firstRow"> <td width="137" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Parameter </p> </td> <td width="242" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Typical Specifications </p> </td> <td width="189" valign="top" style="padding: 0px 7px; border-width: 1px; border-color: windowtext; background: rgb(190, 190, 190);"> <p> Test Conditions </p> </td> </tr> <tr style="height:33px"> <td width="137" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Resistance Range </p> </td> <td width="242" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 1Ω~100MΩ (E24/E96 Series) </p> </td> <td width="189" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 25°C Reference Temperature </p> </td> </tr> <tr> <td width="137" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Operating Voltage </p> <p>   </p> </td> <td width="242" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 50V~2kV (Correlated with power level) </p> </td> <td width="189" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Continuous load conditions </p> </td> </tr> <tr> <td width="137" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Temperature Range </p> </td> <td width="242" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> -55°C~155°C (Military Grade up to 200°C) </p> </td> <td width="189" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Thermal Resistance Test Environment </p> </td> </tr> <tr style="height:35px"> <td width="137" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Pulse Withstand Capability </p> </td> <td width="242" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> 8x rated power at 10ms pulse width </p> </td> <td width="189" valign="top" style="padding: 0px 7px; border-left-width: 1px; border-left-color: windowtext; border-right-width: 1px; border-right-color: windowtext; border-top: none; border-bottom-width: 1px; border-bottom-color: windowtext;"> <p> Complies with IEC60115-8 </p> </td> </tr> </tbody> </table> <p>   </p> <h2> 3. What are the Typical Application Scenarios of Through Hole Resistors? </h2> <p> <strong>Industrial Control</strong>: Current Sampling in PLC Input/Output Modules. </p> <p> <strong>Power Supply Systems</strong>: Current Limiting Protection Circuits for Switching Power Supplies. </p> <p> <strong>Automotive Electronics</strong>: Signal Conditioning Networks for ECU Sensors. </p> <p> <strong>Test Equipment</strong>: Internal Voltage Divider Networks in Multimeters. </p> <p>   </p> <h2> 4. Selection Guide for Through Hole Resistors </h2> <p> <strong>Power Margin Calculation</strong>: Actual Power Consumption ≤ Rated Power × Derating Factor (0.7 recommended at 85°C). </p> <p> <strong>High-Frequency Considerations</strong>: Thin-Film or Wirewound Types are Recommended for Applications >1MHz. </p> <p> <strong>Environmental Adaptability</strong>: Glass-Enamel Coated Types are Preferred for Hot and Humid Environments. </p> <p> <strong>Solderability Verification</strong>: Sn63Pb37 or Lead-Free Solder Must Pass J-STD-002 Testing. </p> <p>   </p> <h2> 5. Cutting-Edge Developments of Through Hole Resistors </h2> <p> <strong>High-Reliability Design</strong>: Utilizes Ceramic Substrates and NiCr Composite Technology. </p> <p> <strong>Miniaturization Trend</strong>: 0207 Package (0.5mm Diameter) in Mass Production. </p> <p> <strong>Intelligent Integration</strong>: Prototype of Smart Resistor Combined with Temperature Sensor. </p>
