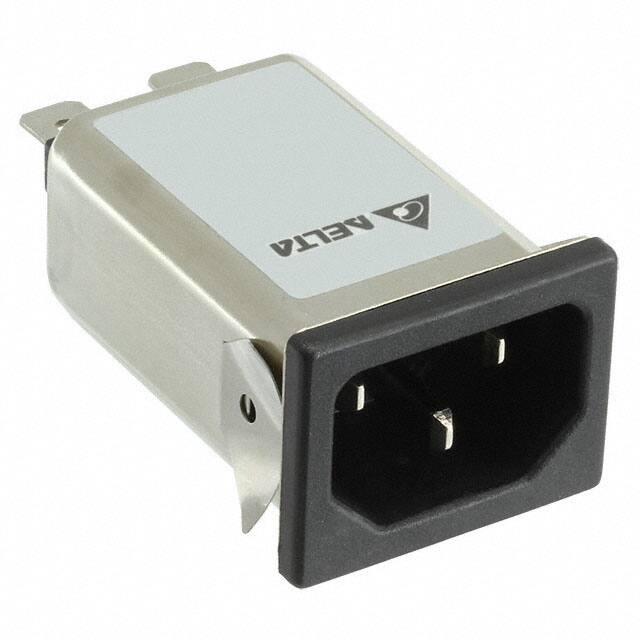

Connector Style
IEC 320-C14
Connector Type
Receptacle, Male Blades
Current Rating – Appliance Inlet
3A
Voltage Rating – Appliance Inlet
115/250VAC
Filter Type
Filtered (EMI, RFI) – Commercial, Medical
Current Rating – Filter
3A
Current Rating – Circuit Breaker
–
Mounting Type
Panel Mount, Snap-In
Termination
Quick Connect
Features
Bleed Resistor, Mounting Clip
Panel Cutout Dimensions
Rectangular – 29.50mm x 21.50mm
Panel Thickness
0.031″ ~ 0.063″ (0.79mm ~ 1.60mm)
Material Flammability Rating
–
Approval Agency
CSA, UL, VDE
Base Product Number
03GENG
