Connector Style
IEC 320-C14
Connector Type
Receptacle, Male Blades
Current Rating – Appliance Inlet
4A
Voltage Rating – Appliance Inlet
250VAC
Filter Type
Filtered (EMI, RFI) – Commercial
Current Rating – Filter
4A
Current Rating – Circuit Breaker
–
Mounting Type
Panel Mount, Snap-In
Termination
Quick Connect – 0.250″ (6.3mm)
Features
Bleed Resistor, Shielded
Panel Cutout Dimensions
Rectangular – 29.40mm x 21.50mm
Panel Thickness
0.031″ ~ 0.079″ (0.79mm ~ 2.00mm)
Material Flammability Rating
UL94 V-0
Approval Agency
CCC, cULus, ENEC
Base Product Number

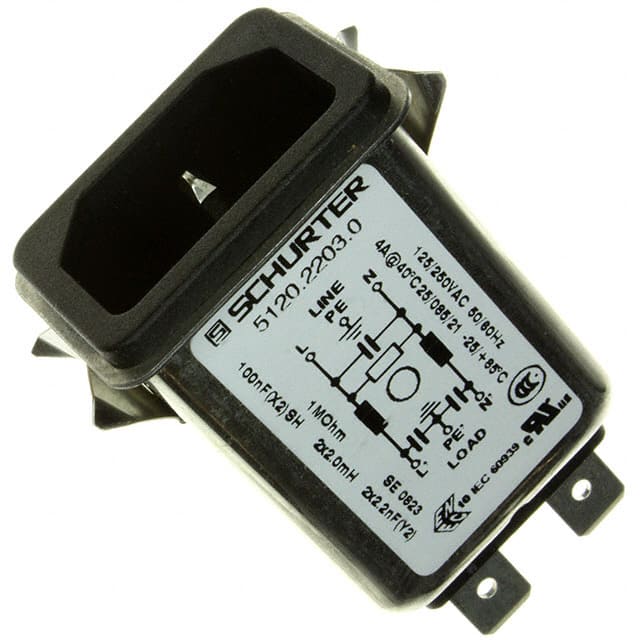

5120.2203
