Arrays

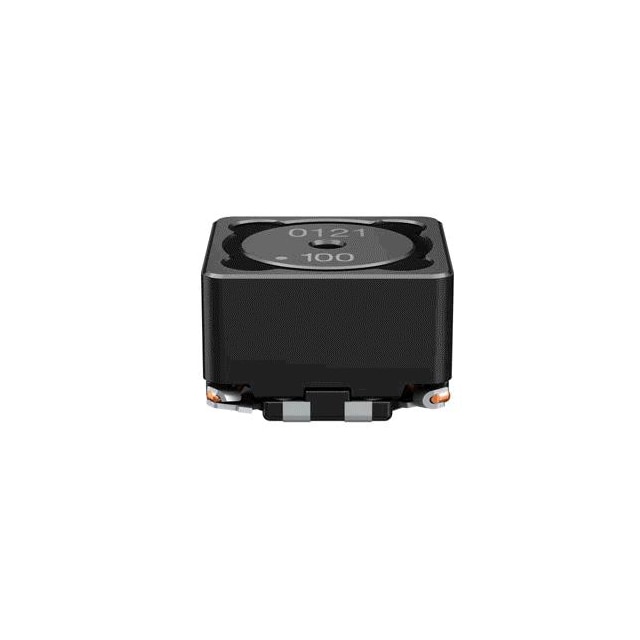

B82472D6223M000

Manufacturer

Category

Arrays, Signal Transformers
Mfr. Part #

B82472D6223M000
Description

FIXED IND 22UH 1.65A 193 MOHM
Details Description

Shielded 2 Coil Inductor Array 88 µH Inductance – Connected in Series 22 µH Inductance – Connected in Parallel 96.5mOhm Max DC Resistance (DCR) – Parallel Nonstandard
Package

Nonstandard
In Stock

8855

Datasheet: datasheet

Contact us

WhatsApp: +86-18123905375

Wechat: +86-18123905375

Email: sales@printedcircuitboardassy.com

Free Quote

Mfr
EPCOS – TDK Electronics
Series
B82472D6
Package
Tape & Reel (TR)
Product Status
Active
Number of Coils
2
Inductance – Connected In Parallel
22 µH
Inductance – Connected In Series
88 µH
Tolerance
±20%
Current Rating – Series
1.65 A
Current Saturation – Parallel
2.55 A
Current Saturation – Series
1.275 A
DC Resistance (DCR) – Parallel
96.5mOhm Max
DC Resistance (DCR) – Series
386mOhm Max
Shielding
Shielded
Ratings
AEC-Q200
Operating Temperature
-55°C ~ 150°C
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.287″ L x 0.287″ W (7.30mm x 7.30mm)
Height
0.189″ (4.80mm)
