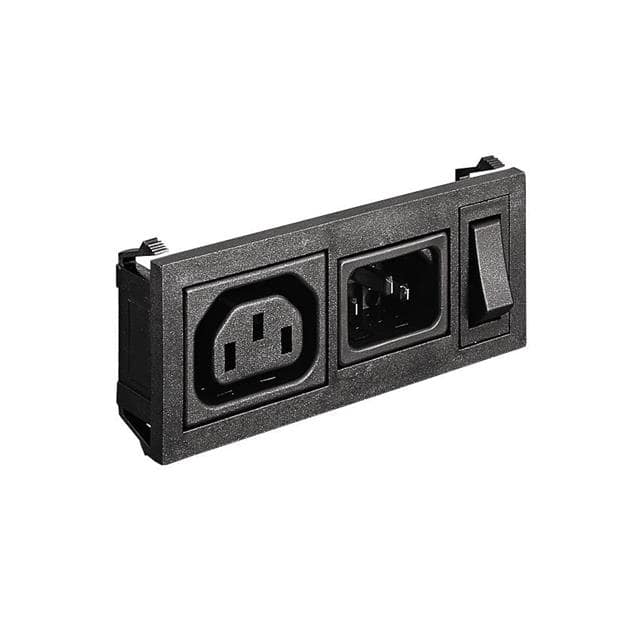

Connector Style
IEC 320-2-2/F; IEC 320-C14
Connector Type
Receptacle, Female Sockets; Receptacle, Male Blades
Current Rating – Appliance Inlet
10A
Voltage Rating – Appliance Inlet
250VAC
Number of Positions
3 per connection (2)
Filter Type
Unfiltered – Commercial
Current Rating – Filter
–
Switch Features
Switch On-Off
Current Rating – Circuit Breaker
–
Mounting Type
Panel Mount, Snap-In
Termination
Quick Connect – 0.250″ (6.3mm)
Panel Cutout Dimensions
Rectangular – 93.50mm x 34.40mm
Panel Thickness
0.039″ ~ 0.118″ (1.00mm ~ 3.00mm)
Material Flammability Rating
UL94 V-0
Approval Agency
CSA, ENEC, UL, VDE
Base Product Number
BZH09/Z
