Arrays

CL-1-2

Manufacturer

Category

Arrays, Signal Transformers
Mfr. Part #

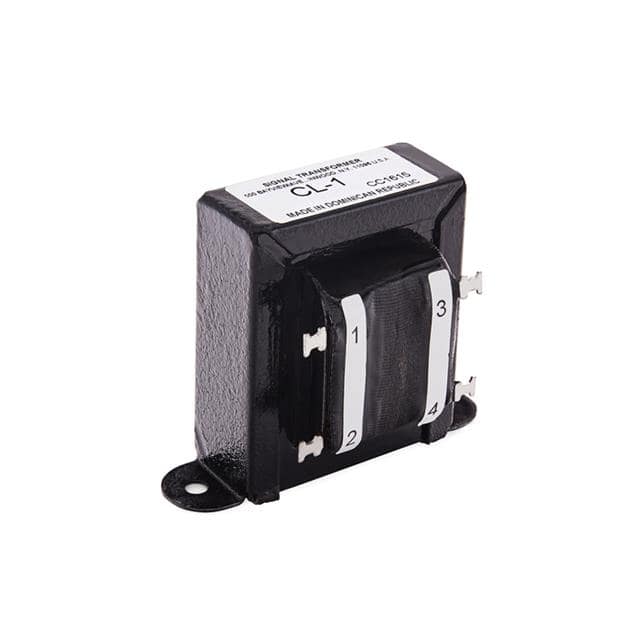

CL-1-2
Description

INDUCT ARRAY 2 COIL 18MH CHA MNT
Details Description

Unshielded 2 Coil Inductor Array 72 mH Inductance – Connected in Series 18 mH Inductance – Connected in Parallel 350mOhm DC Resistance (DCR) – Parallel 2 A Nonstandard
Package

Nonstandard
In Stock

23785

Datasheet: datasheet

Contact us

WhatsApp: +86-18123905375

Wechat: +86-18123905375

Email: sales@printedcircuitboardassy.com

Free Quote

Mfr
Signal Transformer
Series
CL
Package
Box
Product Status
Active
Number of Coils
2
Inductance – Connected In Parallel
18 mH
Inductance – Connected In Series
72 mH
Tolerance
–
Current Rating – Parallel
2 A
Current Rating – Series
1 A
DC Resistance (DCR) – Parallel
350mOhm
DC Resistance (DCR) – Series
1.4Ohm
Shielding
Unshielded
Ratings
–
Operating Temperature
–
Mounting Type
Chassis Mount
Package / Case
Nonstandard
Size / Dimension
2.874″ L x 1.752″ W (73.00mm x 44.50mm)
Height
2.311″ (58.70mm)
