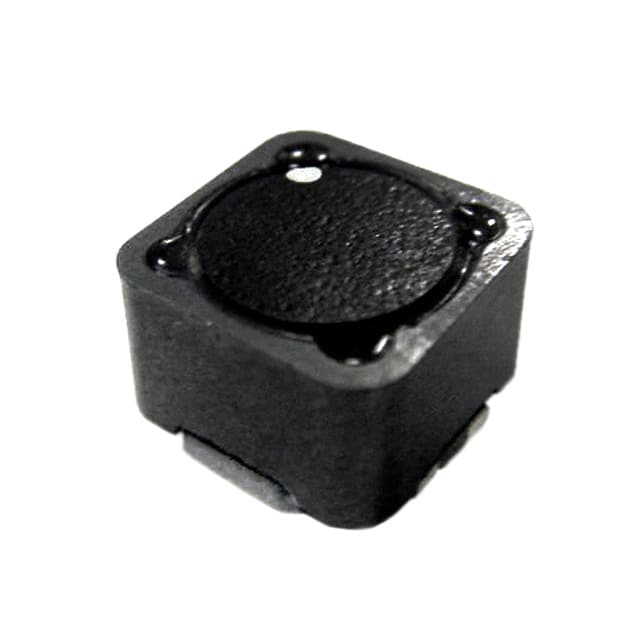

HM78D-12108R2MLFTR

Manufacturer

Category

Arrays, Signal Transformers
Mfr. Part #

HM78D-12108R2MLFTR
Description

INDUCT ARRAY 2 COIL 8.2UH SMD
Details Description

Shielded 2 Coil Inductor Array 32.8 µH Inductance – Connected in Series 8.2 µH Inductance – Connected in Parallel 18mOhm Max DC Resistance (DCR) – Parallel 2.25 A Nonstandard
Package

Nonstandard
In Stock

24861

Datasheet: datasheet

Contact us

WhatsApp: +86-18123905375

Wechat: +86-18123905375

Email: sales@printedcircuitboardassy.com

Free Quote

Mfr
TT Electronics/BI Magnetics
Series
HM78D
Package
Cut Tape (CT)
Product Status
Discontinued at Digi-Key
Number of Coils
2
Inductance – Connected In Parallel
8.2 µH
Inductance – Connected In Series
32.8 µH
Tolerance
±20%
Current Rating – Parallel
2.25 A
Current Rating – Series
1.125 A
Current Saturation – Parallel
12.85 A
Current Saturation – Series
6.45 A
DC Resistance (DCR) – Parallel
18mOhm Max
DC Resistance (DCR) – Series
72mOhm Max
Shielding
Shielded
Ratings
–
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.492″ L x 0.492″ W (12.50mm x 12.50mm)
Height
0.413″ (10.50mm)
Base Product Number
HM78D
