Enhancing SMT PCB Assembly Printing Processes

In the SMT (surface mount technology) printing process, the SMT
printing technology of the PCB factory plays an
important function and straight affects the welding high quality. Therefore, when carrying out SMT
assembly, we must take notice of the printing high quality. After the solder paste printing is finished,
use the SPI to discover the printing quality to avoid tin leakage, not enough tin, and other phenomena.
They will impact the subsequent surface place soldering.

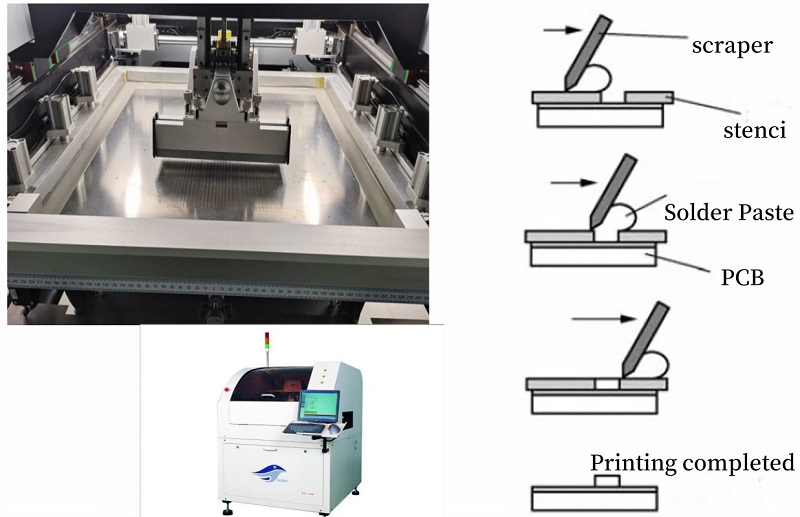

Critical Elements of Printing Technology

Its core aspects include the mesh/Steel Plate, printing material, and scraper.

Mesh/Steel Plate: As a network for printing products, its density, etching top quality,
opening up size and shape, and other features straight impact the printing effect.

Printing materials: It is primarily made up of solder paste and sticky. Solder paste is
the primary solder in the circulation soldering procedure, while adhesive is mostly utilized in the wave
soldering process or to prevent elements from shifting. The solder needs to be lead-free.

Scraper: As a tool for extruding printing materials, its stress, speed, angle, gap, and
other variables have a straight effect on the printing effect.

Printing Technique Selection

Printing approaches are mainly divided right into manual printing, semi-automatic printing, and completely automated printing.When
selecting the printed technique, we ought to think about the PCB kind( HDI PCB, RF PCB,flex-PCB, etc),
element layout, surface treatment, and so on.

Manual printing: As a relatively primitive printing technique, it is suitable for
applications that do not require high precision.

Semi-automatic printing: It is a fairly typical printing technique with reasonably low
equipment investment cost and is suitable for medium-precision applications.

Completely automated printing: It is one of the most exact printing technique, with a
high devices investment cost, and is suitable for high-precision applications.

Key Setups for 3d Printing Specifications

Printing parameters consist of scrape pressure, printing rate, printing angle, and void.

Scrape pressure: identifies the degree of fit in between the pattern and the PCB.
Usually talking, the higher the pressure, the far better the printing impact.

Printing speed: establishes the circulation speed of solder paste on the pattern.
Normally talking, the slower the rate, the better the printing effect.

Printing angle: determines the stress of solder paste moving right into the stencil
opening. Typically, the smaller the angle, the better the pressure.

Gap: determines the density of solder paste on the stencil. Generally speaking, the
smaller sized the gap, the higher the thickness.

Important Indicators of Printing Assessment

Print inspection concentrates on precision, resolution, and density.

Accuracy: Examine whether the center position of the solder paste printed on the pad is
precise to prevent issues such as imprecise part alignment.

Resolution: Observe whether the shape of solder paste printing is regular to prevent
troubles such as short circuits.

Thickness: Check whether the thickness of solder paste printing is consistent to make
certain the welding high quality.

Inspection of Assessment Tools

Printing inspection tools mainly include magnifying glasses,microbalance, laser thickness scale, AOI, and2D/3D features on printing machine.

Magnifying glass: Made use of to inspect accuracy and resolution.

Microbalance: Used to gauge thickness.

Laser Thickness Scale: The device can promptly measure density.

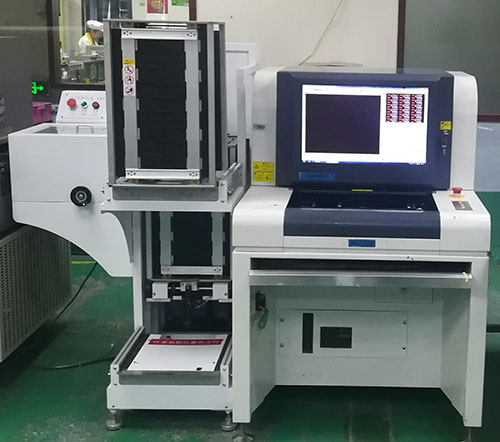

AOI: Accomplish automated inspection accuracy, resolution, and density.

3D printer: made use of to identify density much more accurately.

Summary

Printing modern technology plays a vital role in PCB production, and its quality is directly connected
to SMT soldering quality.

Throughout the printing process, pick the suitable screen/steel plate, printing material, and scraper,
and fairly established the printing criteria according to the procedure demands to make sure that the
printing result fulfills the requirements.
