ICT Vs FCT
FCT (Function Circuit Testing) and ICT circuit test (In-Circuit Testing) are two generally made use of
testing methods in printed circuit board
producing to make certain the quality and efficiency of printed circuit board and electronic tools.
There are obvious distinctions between them in testing function, test methods, and suitable situations.
This short article will check out the differences between these two testing methods carefully.

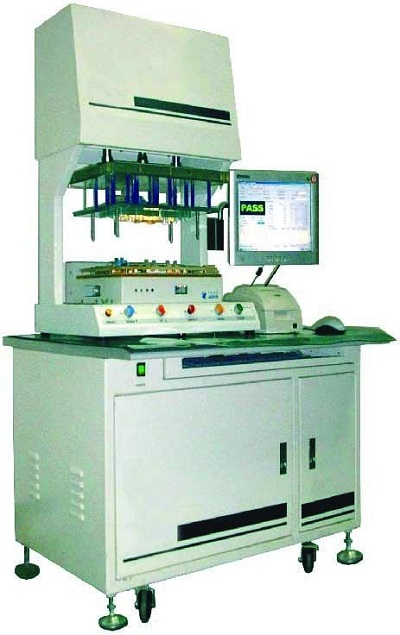

ICT (In-Circuit Testing)
ICT testing is a very early electronic testing technique mostly made use of to identify connection and
soldering errors during PCB assembly.
The following are the highlights and features of ICT:
1) Used in the PCB Manufacturing Process
ICT is usually used in the onset of PCB assembly to find the part’s proper installing and link. It
is generally after soldering however before final assembly.
2) Point-to-Point Testing
ICT makes use of probes and test components to perform point-to-point tests on numerous link factors on
the PCB. These testing factors are generally soldering points or connection points on the PCB.
3) Identify Connection Issues
The major goal of ICT circuit testing is to spot link troubles such as shorts, opens, wrong polarity,
etc. It can detect problems where parts are not put appropriately or soldered unsecurely.
4) High-Precision Testing
ICT generally gives very exact test results and can find little link issues. So, it end up being a
powerful device for discovering printed circuit board construction flaws.
5) Not Ideal for Function Testing
ICT is mainly utilized for connectivity testing. Therefore, it is not ideal for total functional
testing. It can not test the efficiency or capability of an element.
6) High Expense
ICT has greater test component and tools expenses and longer testing times. Consequently, it is
frequently utilized in demanding manufacturing settings, such as connection quality.

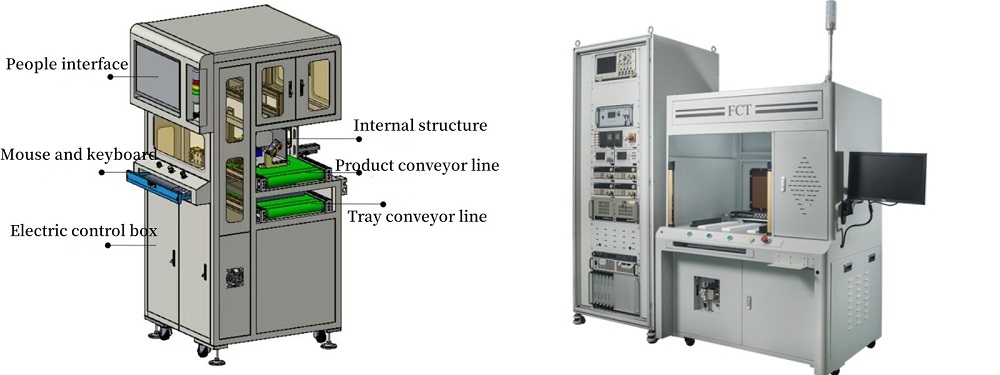

FCT (Function Circuit Test)
FCT is an advanced testing approach. It is utilized after ICT to test the capability and performance of
electronic devices. The complying with are the main features and features of FCT:
Final assembly testing: FCT is usually performed during the final assembly phase of PCB
assembly to guarantee that the capability and efficiency of the entire circuit card fulfill specs.
Functional testing: FCT tests the entire circuit card assembly capability. It verifies
the expected function according to the style specs.
Connection testing: Although the FCT mainly concentrates on functional testing, it can
detect connection problems, such as loose or poor wire connections.
Automated testing: FCT typically uses automatic testing tools and testing procedures to
perform tests swiftly, repeatably, and efficiently. It makes FCT suitable for high-volume PCB production
environments.
Discover whole performance: FCT checks the feature of individual elements yet
additionally the efficiency of the whole system. It includes checking the gadget response time, power
intake, interaction method, and other aspects.
Much more comprehensive testing: Contrasted to ICT, FCT provides a more thorough
testing since it covers the total tools efficiency and functionality.
Testing expense: Although FCT supplies a much more detailed testing , it is typically
much more costly than ICT.
Summary
After summarizing the above differences, we understand that ICT and FCT play various roles in printed
circuit board manufacturing.
ICT is generally utilized to find link troubles and welding quality, while FCT is made use of to test
the functionality and efficiency of the whole gadget.
Consequently, they are commonly made use of at different stages of production to make certain the
excellent quality and integrity of electronic products prior to they are supplied throughout individual.
Selecting which test method to make use of normally depends upon the product type, manufacturing
demands, and testing goals.
In real circuit board manufacturing, we normally use these two testing methods together to make sure the
excellent quality and performance of the product.
