PCB Board Assembly Process
The PCB assembly process is the process of assembling PCB board, components, electronics and so
on.
As a PCBA Process Engineer, I will explain the different steps of PCB Assembly in detail.
1. Design: Create PCB drawings that meet the functional requirements for electronic
products. This includes component location, pin spacing, pin size, hierarchical structures, etc.
2. Circuit board processing is the process of converting PCB drawings to the circuit
and shape of the circuit boards.
3. Circuit board manufacturing is the process of printing circuit boards and graphics
onto PCBs.

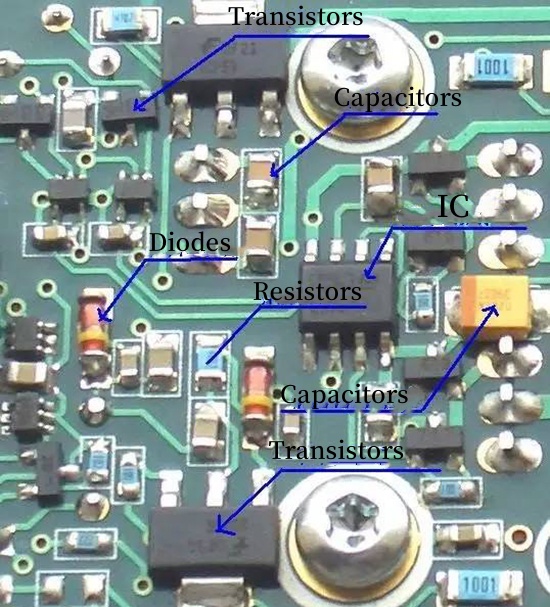

4. Purchase the components required for the PCB according to its design, including
resistors and capacitors.
These components are purchased according to electronic component list (BOM).
5. Mounting components: Attach the components to the PCB.
Placement methods for components include:
Manual placement: Components can be manually placed on the PCB.
Automated placement: Place components on the PCB using an SMT machine.
6. Soldering: Solder components to PCB.
Methods of welding include:
Wave soldering: Melt and heat the solder paste in order to solder the components to the
PCB.
Reflow Oven: heat and melt solder paste in order to solder components to PCB.
7. Inspection: Check the PCBA for compliance with the specifications.
detection methods include:
Appearance Inspection: Check the appearance of the card to see if it has any defects.
Test the PCBA to see if it functions properly.
8. Pack the PCBA to transport and store.
Common issues that can occur during the assembly of circuit cards:

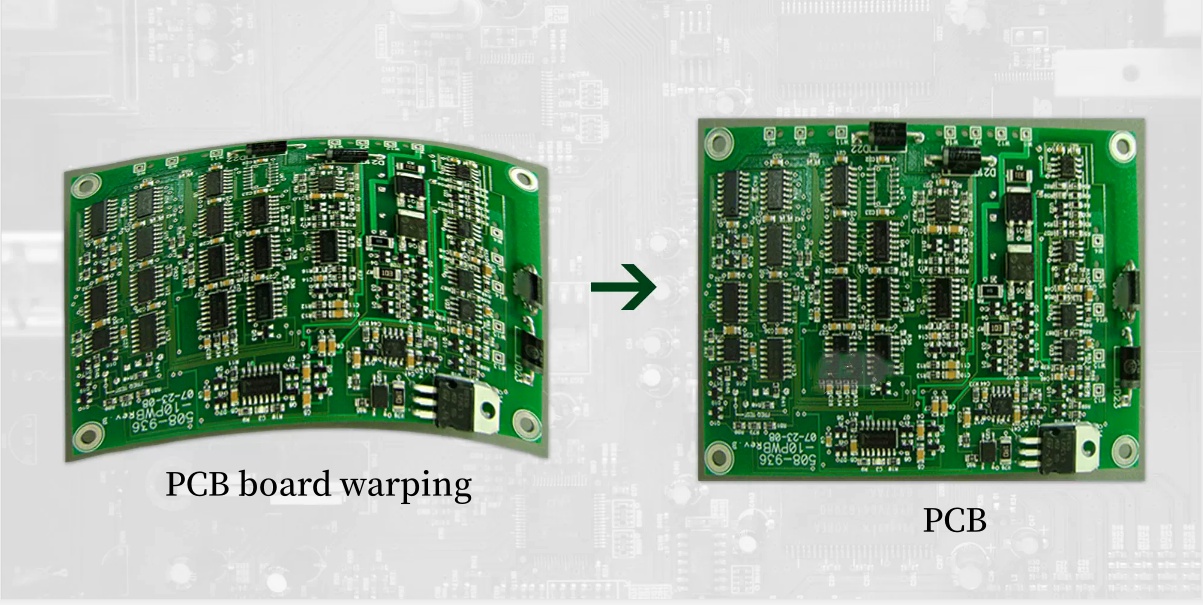

Common PCB manufacturing problems include PCB warping deformation of the PCB board
cracks in the PCB boards short circuits on PCB lines etc.

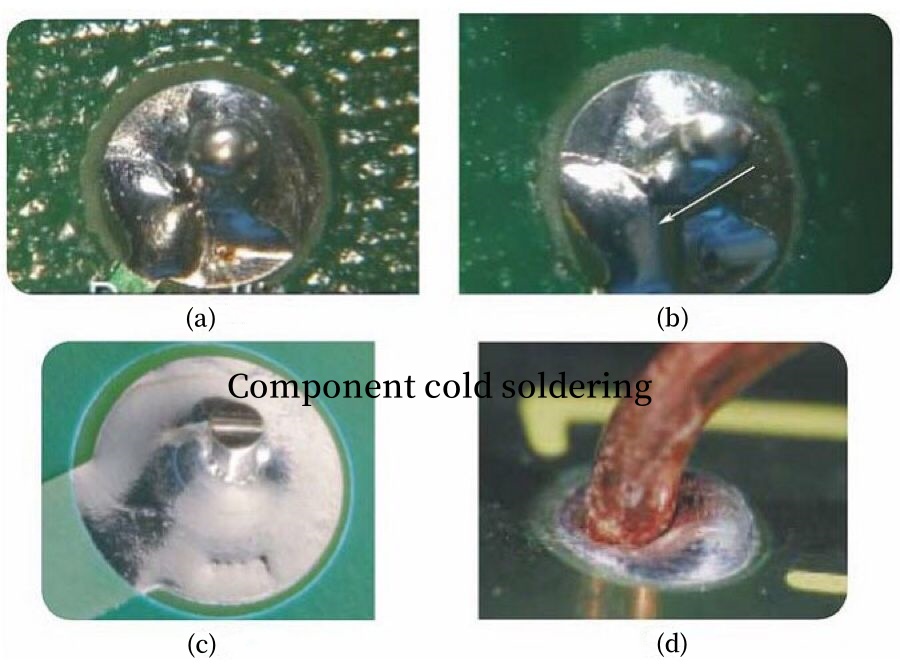

Common problems in the component placement process: component misalignment,component
cold soldering, component desoldering, etc.
Problems that occur in the welding process include: cold solder joints; desoldering;
porosity of solder; contamination by solder.
PCBA production requires a thorough understanding of these issues. It also demands a timely detection
and resolution of any problems and that PCBA quality meets requirements.
Summary
To ensure high-quality electronics, the PCBA process demands a thorough knowledge of each step and
strict quality control.
The process engineers must monitor each step and solve any problems that may arise. This will ensure
that the PCBs produced meet the required performance and reliability.
